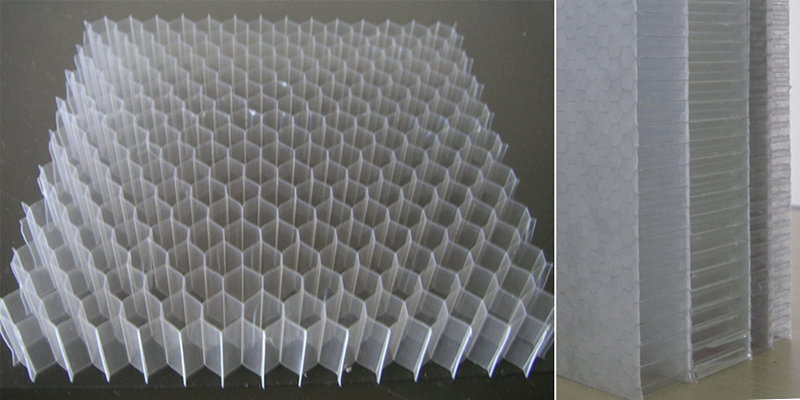

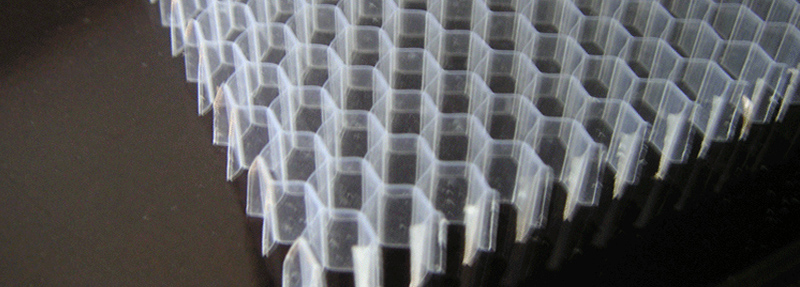

Name: PVC series honeycomb
Due to the physical and chemical characteristics of the plastic honeycomb material, it is non-absorbent, corrosion resistance, and has wide application in the following areas.
1. Shipbuilding industry: hull, deck, boat top, door, hatch cover, the interior of the ship, which use a lot of plastic honeycomb material.
2. Maritime industry equipment also extensively uses plastic honeycomb material, such as dock.
3. Due to its insulation, the construction of an indoor swimming pool adopts plastic honeycomb board to keep the water temperature. Used as floor where you step into the pool, people do not feel cool.
4. Plastic honeycomb panels can also be used for the fence of the fishing grounds, which is not only durable, but also strong enough to withstand wind and waves.
Technical indicators:
Material |
Transparent PVC sheet |
Honeycomb wall thickness |
0.10~0.20mm |
Specifications |
Margins (Aperture) S=4mm S=6mm S=8mm S=12mm S=20mm S=30mm |
Dimensions |
Width:420mm 520mm 61 0mm Length:2400mm |
Honeycomb height |
Unlimited |
Bulk density |
50kg/m3 |
Compressive strength |
0.06—1.0Mpa |
Operating temperature |
PVC: -40℃ -- +50℃ |
Cellular surface |
two kinds of surfaces: Non-woven fabrics and Through-hole |
